New chip support | MaxWiz burner now fully supports NXP S32K3 series automotive MCU mass production burning
The S32K3 safety mass production burning solution has been officially launched, targeting regional controllers, vehicle bodies, and power electronic control, with new vehicle specifications adapted!

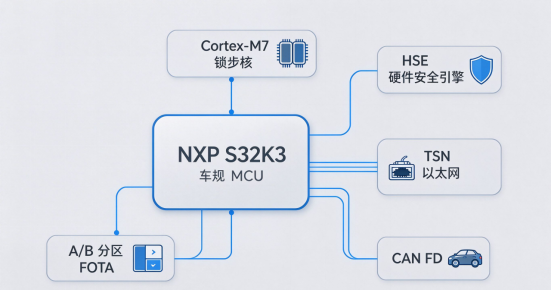

The NXP S32K3 is a new generation high-performance universal MCU for automotive specifications under the NXP S32 automotive platform. It is based on the Arm Cortex M7 core and provides multiple architecture configurations including single core, dual core, and lock step core. The highest functional safety level can reach ISO 26262 ASIL D, while meeting the ISO 21434 in car information security specification. It is one of the main chips in the wave of automotive electronic domain control. The chip is equipped with an HSE hardware security engine, which supports AES/RSA/ECC encryption, secure boot, key storage, and side channel protection; Integrated TSN Ethernet CAN FD、FlexIO、 Rich peripherals such as high-speed ADC, support A/B partition FOTA firmware upgrade, adapt to a long-term 15 year supply cycle, widely used in vehicle area controllers, vehicle control modules, battery management BMS, motor control, gateways, etc T Box、 Lighting, HVAC and other onboard electronic control units are also widely used in high safety industrial control, rail transit equipment and other scenarios.
As a vehicle safety MCU, S32K3 has a much more complex burning process than ordinary consumer MCUs: multi partition Flash management, HSE safety engine configuration, secure boot, debugging access control, NVM protection, production unique identity code writing, anti read back control, etc. It has strict requirements for burning algorithm stability, timing, permission verification, and log tracing. Many automotive electronics solution providers, SMT automotive production lines, and component manufacturers often encounter pain points such as slow algorithm adaptation, abnormal lock step core burning, cumbersome security configuration operations, unstable offline burning, and lack of complete traceability records when importing S32K3 projects.
To meet the rapid trial production and large-scale production needs of in vehicle electronic control projects, MaxWiz has completed exclusive programming algorithms, firmware, and upper computer upgrades. The entire series of programmers has officially added NXP S32K3 series chip programming support, covering the entire process of research and development debugging, sample verification, small batch trial production, and automated in vehicle production lines, balancing the flexibility of development and debugging with the safety control capabilities of vehicle production.
NXP S32K3 Series Burning Core Capability
1. Stable burning of standard JTAG/SWD interface, suitable for automotive tooling scenarios, deeply optimized algorithms for S32K3 multi block Code Flash, Data Flash, UTest NVM partition architecture, supporting whole chip erasure, individual erasure by partition, partition firmware burning, and independent CRC verification; Adapt to various production methods such as vehicle board long line probes, high-voltage isolation fixtures, onboard testing points, bare chip burning sockets, etc., optimize timing for power fluctuations and electromagnetic interference on the vehicle board, reduce the failure rate of on-board burning, and adapt to high reliability tooling burning scenarios such as BMS and domain control boards. Support single core, dual core, and lock step version S32K3 chip burning, lock step core synchronization verification, to ensure consistency in firmware burning related to functional safety.
2. Visual configuration of non-volatile storage, boot parameters, and protection bits supports S32K3 device configuration parameters, boot selection, clock configuration, NVM protection sectors, Flash write protection, debug access permissions, and other configuration items for visual operations. Parameters can be packaged with firmware and saved as engineering files. Unified calling of production lines to avoid batch risks of electronic control units caused by manual configuration differences, while supporting DCD startup configuration image writing to meet the requirements of power on initialization.
3. Flexible control of serial number SN, UID, calibration parameters, and version information. Burning supports fixed codes, incremental serial numbers, scanning and issuing SN, external CSV import of unique codes, and can write vehicle VIN codes, calibration parameters, version information, and hardware batch numbers at any specified address; Support burning count locking, control the number of times a single chip is burned, prevent repeated burning and mixing of defective products, meet the mandatory requirements of one item, one code for on-board components and vehicle traceability, and adapt to BMS and separate calibration parameter writing requirements for motor and electronic control.
4. Complete support for HSE safety engine, safe start, and read protection, safeguarding vehicle regulations and intellectual property rights. Support for HSE safety engine configuration, safe start enablement, debugging port locking, anti read back protection, and other safety processes; It can complete firmware writing and security configuration in one step during the burning process, strictly control firmware reading permissions, prevent programs from being read or reverse cracked, meet ISO 21434 vehicle information security requirements, and protect core assets such as AUTOSAR, underlying drivers, and control algorithms.
5. Dual mode of online debugging and offline mass production
·Online mode: Operated by the upper computer of the computer, suitable for repeatedly downloading firmware, debugging lock step cores, HSE configuration, FOTA A/B partition verification during the research and development stage, facilitating engineers to quickly iterate electronic control software;
·Offline mass production mode: The complete project is downloaded to the burner in advance and runs independently without a computer. It can be triggered by scanning a code and burned with one click. The production line workstation does not require a matching computer, and the operation is simple and controllable, suitable for large-scale production in car parts factories.
Advantages of Mass Production Burning Solution Matching with MaxWiz
1. Mainstream models are fully covered, and old users can upgrade their firmware to use the MPlus300NXP and car standard universal programmer, which are all synchronously compatible with the S32K3 series. Old customers do not need to replace their hardware, only upgrade the upper computer software and firmware to unlock the chip support, greatly reducing the cost of adding hardware to the car standard production line.
2. Multi channel independent parallel burning, improving the rhythm of the electronic control production line and supporting multi-channel independent parallel burning. Multiple S32K3s are synchronously burned in multiple workstations on one host, and each channel is independently verified. Single channel defects do not affect the continued production of other workstations; Suitable for batch burning of multi board and multi module electronic control boards, improving production line throughput efficiency and adapting to Tier 1 large-scale order production.
3. Deep integration with automated production lines, complete logs meet the requirements of vehicle traceability, support scanning gun triggering, burning logs for local storage and uploading to MES system, defect marking, production data statistics, logs including chip UID, SN, burning time, firmware version, verification results, and workstation numbering; It can be connected to robotic arms, ATE test benches, and automatic testing fixtures, integrated into fully automated SMT production lines to achieve unmanned burning and full process traceability, meeting the audit requirements of the automotive parts industry.
4. Engineering file encryption management, continuously expanding model support firmware, partition configuration, security parameters, SN rules, and calibration parameters packaged as independent engineering files. Engineering files support encryption to prevent configuration leakage; Directly call across devices and factories; In the future, S32K3 will add new sub models, and MaxWiz will continue to expand its support list through software firmware iterations to quickly respond to new project selection.
5. Exclusive technical support for vehicle specification scenarios, providing S32K3 burning project templates, wiring references, tooling design guidelines, HSE configuration guidelines, and common problem manuals; The technical team can assist customers in debugging isolation fixtures, solving problems such as abnormal lock step core burning, unstable long-term burning, safe startup configuration, unlocking debugging ports, batch calibration parameter burning, and other difficult production issues related to vehicle specifications. They can also cooperate with customers to complete production line trial verification.
From the debugging of electronic control algorithms and safety startup verification in the research and development stage, to small-scale trial production verification of yield and functional safety testing, and then to large-scale automated production, MaxWiz provides a stable, efficient, and traceable chip programming solution for the S32K3 vehicle electronic control project, solving pain points such as long adaptation cycles for automotive chips, complex safety configurations, difficult mass production traceability, and unstable lock step core burning, and helping automotive electronic components quickly land and pass audits smoothly.
